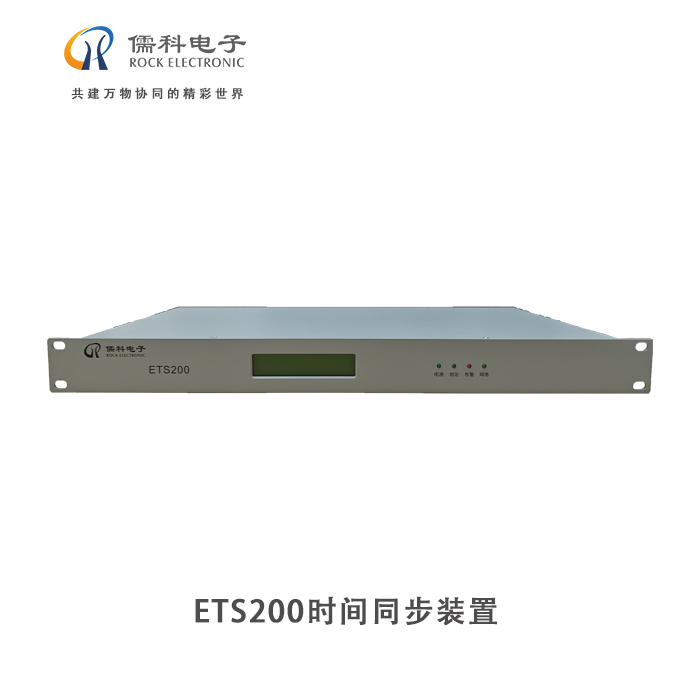

ETS200 Time Synchronization Device
ETS200 Time Synchronization Device provides two
100Mbps Ethernet ports for NTP time synchronization. It also offers eight
output ports for 1PPS, IRIG-B, or time code messages, four static dry contact
output ports, and two relay alarm output ports. When used as a clock,
the device meets the DL/T 1100.1-2018 standard.
The device receives Beidou satellite signals to calibrate the local
clock and outputs precise time and frequency signals.
For ease of management, the ETS200 time synchronization device supports both local serial port management and Web-based management.
The main function:
- Utilizes standard NTP/SNTP protocols to synchronize the time of computers within a local area network to satellite standard time
- Supports operational modes based on the Beidou satellite system, including single Beidou satellite mode
- Features two 10/100M network interfaces with independent IP addresses, capable of supporting time synchronization for two physically isolated networks simultaneously
- Provides eight RS-422 level PPS or IRIG-B outputs and four PPS/PPM/PPH dry contact outputs
- Supports one RS-232 serial port for time information output
- Compatible with a wide range of client operating systems, including WINDOWS9X, WINDOWS NT/2000/XP/2003/Win7/Win10, LINUX, UNIX, SUN SOLARIS, as well as CISCO routers and switches
- Equipped with power outage and device lost lock alarms
